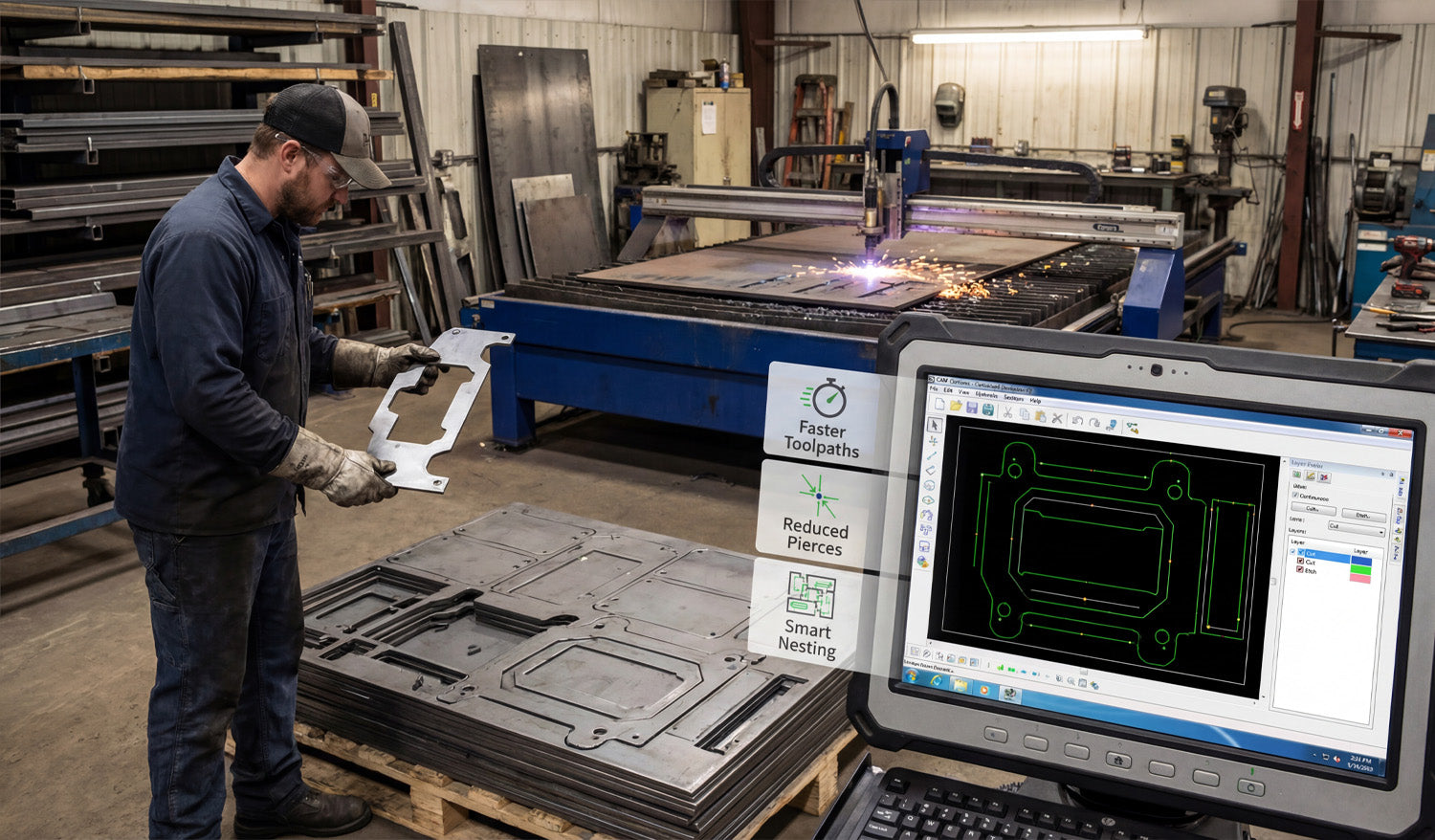

Using well-prepared DXF files is one of the easiest ways to boost the efficiency of your CNC plasma cutter, cut more parts per hour, and get better results from the same machine.
Why DXF Files Matter So Much for CNC Plasma Cutting
A CNC plasma cutter follows paths. If those paths are messy, broken, or inefficient, your machine wastes time and consumables. DXF (Drawing Exchange Format) files store clean vector geometry—lines, arcs, and curves—that plasma CAM software can turn into fast, reliable toolpaths.
With good DXF files, you can:
- Reduce total cutting time per sheet.
- Lower pierce counts and arc-on time.
- Use consumables more efficiently.
- Get more repeatable, production-ready parts.
Benefit 1: Cleaner Toolpaths and Faster Motion
When a DXF file is clean, your CAM software can generate smooth, continuous toolpaths. That has a direct impact on plasma cutting speed.
- Continuous contours: Long, uninterrupted lines and arcs keep the torch moving at a steady speed.
- Fewer stops and starts: Reduced lifting and repositioning means less non-cutting time.
- Better acceleration and deceleration: Smooth geometry lets the machine follow paths at higher feed rates without shaking.
The result: shorter cycle times and more parts cut per shift, without touching your speed and amperage settings.
Benefit 2: Fewer Duplicate Lines and Double Cuts
Duplicate lines are a common hidden problem in DXF files. On a plasma cutter, double cutting the same path wastes time and overheats the material.
- Extra arc-on time: Cutting a contour twice increases wear on consumables.
- Wider kerf and rough edges: Double passes can widen the cut and leave ugly edges.
- More dross and warping: Extra heat can warp thin material and create more cleanup work.
DXF files that have been cleaned with “remove duplicates” tools eliminate this problem, allowing the torch to make a single, efficient pass on every contour.
Benefit 3: Optimized Piercing and Cut Ordering
Pierces are expensive in plasma cutting. They consume consumables, generate heat, and slow down each job. Good DXF files help your CAM software minimize pierces.
- Closed, continuous profiles: Allow the CAM system to combine segments into a single cut with one pierce.
- Logical internal features: Clean inner cutouts help the software cut holes first, then outer profiles, with the least number of pierces.
- Shared edges (common-line cutting): In some jobs, parts can share edges so a single cut separates two parts.
When your DXF geometry is organized well, the software can automatically apply smarter pierce and cut-order strategies that save real time on the table.
Benefit 4: Better Nesting and Material Utilization
DXF files with accurate, closed outlines are much easier to nest efficiently on a sheet.
- Tighter nesting: Clean contours allow parts to be placed closer together without overlaps.
- Less scrap: Better material utilization means you buy fewer plates for the same number of parts.
- Simpler layout: Consistent geometry and size variants help you build standard nests for common jobs.
More parts per plate and fewer offcuts directly improve the overall efficiency and profitability of your plasma cutting operation.
Benefit 5: Correct Kerf Compensation and Tolerances
Kerf width is a big factor in plasma cutting. Good DXF files are designed with kerf and tolerances in mind, which reduces rework and scrap.
- Proper slot and hole sizes: Features are drawn with the expectation that kerf compensation will be applied in CAM.
- Consistent dimensions: Straight, clean vectors allow the CAM software to offset paths accurately.
- Less trial and error: When the base geometry is reliable, you do not have to “fudge” dimensions every time.
Parts that come off the table fitting correctly the first time save shop time and keep your plasma cutter focused on production, not rework.
Benefit 6: Layer Control for Marking and Cutting
Many CNC plasma systems can mark, scribe, or lightly etch as well as cut. DXF files that use layers effectively make this easy to manage.
- One layer for through cuts (outer profiles and holes).
- Another layer for part numbers, bend lines, or reference marks that are etched instead of cut through.
- A separate layer for construction geometry that the machine should ignore.
Layered DXF files reduce setup time and help you add useful information to parts without slowing down production.
Benefit 7: Faster Setup with Ready-to-Use DXF Libraries
When you build or buy a library of high-quality, plasma-ready DXF files, your setup time drops dramatically.
- Repeat jobs: Common brackets, gussets, and tabs can be loaded and nested in minutes.
- Product lines: Standardized part families (different sizes and thicknesses) share similar DXF geometry.
- Less programming: Operators spend less time drawing and more time cutting.
A strong DXF library turns your CNC plasma cutter into a fast “production engine” instead of a machine that is constantly waiting for drawings.
How to Prepare DXF Files for Maximum Plasma Efficiency
To get all these benefits, your DXF files should follow a few simple best practices:
- Clean geometry: Close all paths, remove duplicates, and simplify overly dense curves.
- Plasma-ready detail: Avoid tiny features below your kerf and material strength limits.
- Smart layering: Separate cut, mark, and reference geometry.
- Correct scale and units: Confirm real-world size before generating toolpaths.
- Standardization: Use consistent slot widths, hole sizes, and tab designs across your parts.
Quick DXF Efficiency Checklist for CNC Plasma Cutters
Before you send a DXF job to your plasma cutter, ask yourself:
- ✔ Are all outlines closed and free of gaps?
- ✔ Have I removed duplicate and overlapping lines?
- ✔ Does the design avoid micro details that plasma cannot hold?
- ✔ Are pierces minimized through continuous contours and smart nesting?
- ✔ Are layers organized for cutting versus marking?
- ✔ Has this DXF (or a previous version) been cut and adjusted for kerf and fit?
Conclusion
DXF files are more than just a way to store 2D drawings—they are a key lever for improving the efficiency of your CNC plasma cutter. Clean, well-organized DXF geometry leads to faster toolpaths, fewer pierces, better nests, and parts that fit right the first time. By investing a little effort into preparing and standardizing your DXF files, you turn your plasma cutter into a faster, more profitable production tool without changing the hardware at all.
