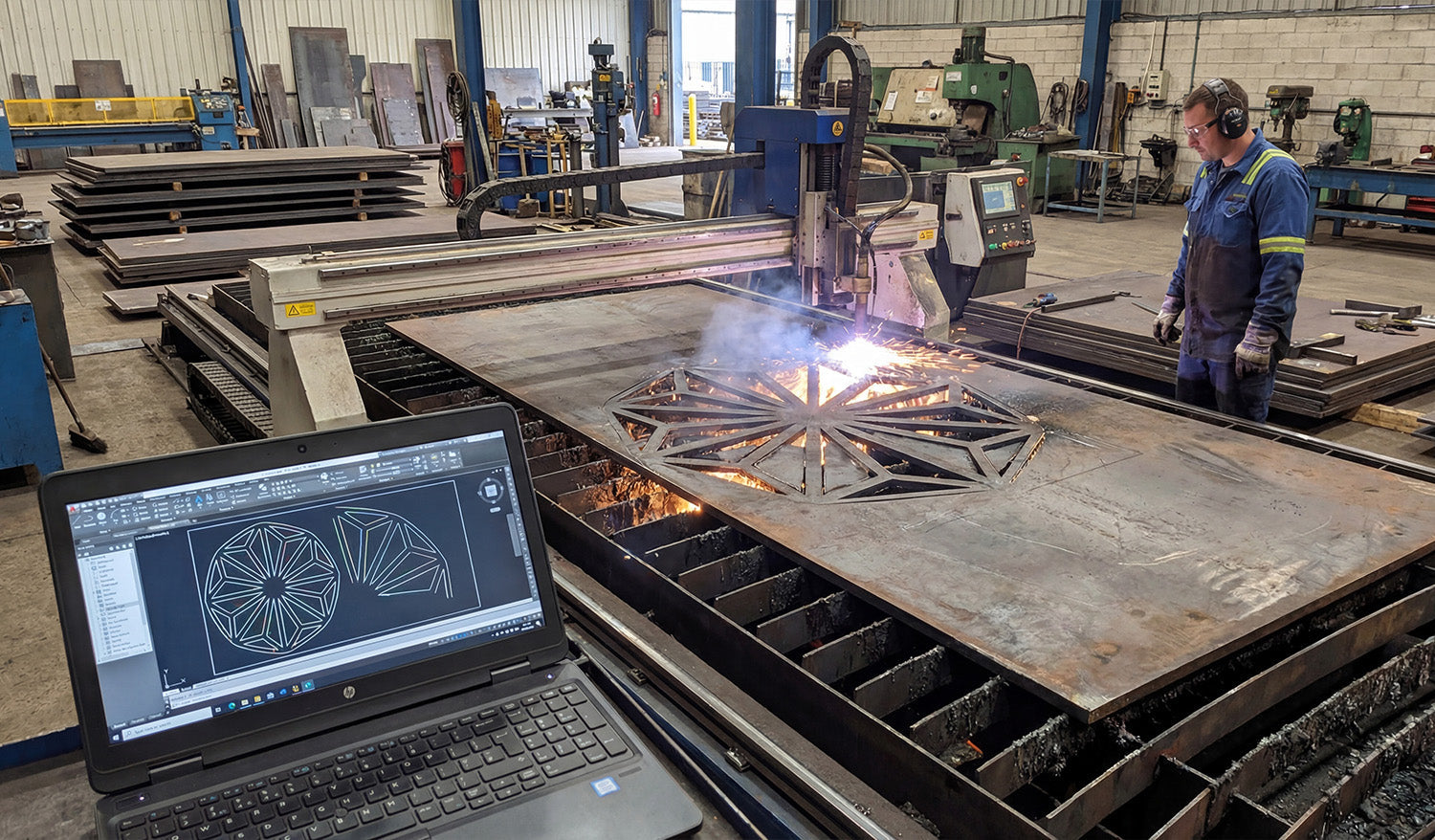

Introduction to DXF Files in CNC Cutting
DXF (Drawing Exchange Format) files are the cornerstone of CNC (Computer Numerical Control) cutting. Whether you are using a laser cutter, plasma cutter, or CNC router, optimizing your DXF files is crucial for achieving precise cuts and ensuring that your projects run smoothly. In this article, we will explore the best practices for optimizing your DXF files for CNC cutting, helping you avoid common mistakes and improve both the quality and efficiency of your CNC projects.
Why Optimizing Your DXF Files Is Important for CNC Cutting
Optimizing your DXF files is essential for several reasons:
- Increased accuracy: Well-optimized DXF files help your CNC machine follow the correct paths, minimizing the risk of errors and misalignments.
- Faster processing: Streamlined files require less processing power and time to load, improving the overall efficiency of your CNC cutting process.
- Reduced material waste: Optimized DXF files ensure that the CNC machine cuts with precision, reducing unnecessary waste of materials.
Tips for Optimizing Your DXF Files for CNC Cutting
1. Simplify Complex Designs
Complex designs with unnecessary details can slow down the CNC machine's processing time and affect the cutting accuracy. To optimize your DXF files:
- Remove unnecessary layers: Delete any unused or hidden layers that might be included in your design file.
- Consolidate similar lines: Combine lines and arcs where possible to simplify the design.
- Use simple geometries: Avoid overly complex curves and opt for simpler shapes whenever possible.
2. Check for Closed Paths
One of the most common issues in DXF files for CNC cutting is open paths. When a path is not closed, the CNC machine might not cut correctly or might leave gaps in the design. To avoid this:
- Ensure all your paths are closed (the starting and ending points of the path should meet).
- Use software like AutoCAD or Fusion 360 to visually check and fix open paths in your DXF files.
3. Use Appropriate Line Thickness
The line thickness in your DXF file can impact the final output of your CNC cutting. For precise cutting:
- Set your lines to the correct thickness for your CNC machine.
- In most cases, CNC machines use vector lines, and line thicknesses are typically set to 0.001 mm for most designs.
4. Scale Your Design Properly
Ensuring your design is scaled correctly in the DXF file is critical for CNC cutting. A design that is not scaled to the right dimensions can result in parts that do not fit together as intended.
- Double-check the scale in your DXF file before exporting it.
- Use the scale tool in your design software to confirm the exact dimensions.
5. Avoid Using Duplicated Objects
Sometimes, duplicating objects in the design (for example outlines or components) may inadvertently occur when working with DXF files. These duplicated objects can result in unnecessary cuts and extra time on the machine.
- Use the “remove duplicates” tool in your design software to clean up your DXF file before exporting it for CNC cutting.
6. Convert Text to Paths
Text in DXF files can sometimes cause issues with CNC cutting, as the machine may not properly interpret the text. To avoid this:
- Convert any text to paths or outlines before exporting the file. This ensures the CNC machine cuts the text exactly as you designed it.
7. Use Layers Effectively
DXF files support multiple layers, which can be helpful for organizing different elements of your design (for example cutting, engraving, or scoring). To optimize your use of layers:
- Organize your design by assigning different operations to different layers. For example, one layer for cutting paths, one for engraving, and one for scoring.
- Make sure each layer is properly defined and that there are no overlapping elements between layers.
8. Optimize for the CNC Machine Type
Different CNC machines (plasma cutters, laser cutters, routers, and others) may have specific requirements for the DXF files they process. To ensure compatibility:
- Check your CNC machine’s manual for any specific guidelines regarding DXF files.
- Adjust settings such as line types and units of measurement according to the machine's specifications.
9. Test Your Files
Before running a full production run, it is always a good idea to test your DXF file on a scrap piece of material. This will allow you to catch any potential issues before they result in wasted materials or time.
Common Issues and How to Fix Them
-
Problem: The machine cuts the wrong path.
Solution: Check for hidden objects or duplicate paths in the file. -
Problem: The machine cuts too slowly.
Solution: Simplify the design by removing unnecessary nodes or reducing the number of details. -
Problem: Material wastage during cutting.
Solution: Reassess your design layout to ensure the paths are optimized to fit efficiently within the material.
Conclusion
Optimizing your DXF files is an essential step in ensuring a smooth CNC cutting process. By following the tips and best practices outlined in this guide, you can minimize errors, reduce waste, and improve the overall efficiency and precision of your CNC projects. With the right optimizations, your CNC machine will operate at peak performance, delivering high-quality results every time.
